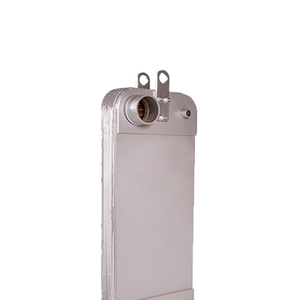

Plate Type Heat Exchanger For Evaporator Z416*50

This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat.
  • Z416*50
  • Tingertech
  • 50Hz  60Hz  50/60Hz
Availability:
Quantity:

Product Description

Applications of heat exchanger:

This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat.

How it Works

Fluid A passes from the port on the left of the heat exchanger through every other channel created by the plates to the opposite end port on the left of the heat exchanger (looking at it the long way). Fluid B passes from the port on the right through the other channels created by the plates and comes out the other port on the right side. The fluids are essentially touching each other through the plates and heat is transferred from the hot fluid to the cold fluid. (but the fluids do not mix).

Model numberW(mm)H(mm)Lp(mm)Tp(mm)L(mm)
B3-01478208401709+2.2N
B3-01588198461609+2.2N
B3-02078317422809+2.2N
B3-026111310502509+2.4N
B3-0381094195036010+1.68N
B3-0501115255046610+2.4N
B3-050s112526504669+2.23N
B3-0951916169251911+2.8N
B3-095s197622925199+2.43N
B3-19030768617956711+2.6N
B3-120DS251491155/166400/36910+1.68N
B3-3003661006228.587216+2.8N
