YWF Φ500 External Rotor Motor Axial Fan Ltc High Speed Cooling Fan

Axial fans have a very wide range of uses. They are airflow in the same direction as the axis of the blades. For example, electric fans and air conditioners outside fans are fans that operate in axial flow. It is called "axial flow" because the gas flows parallel to the fan axis. Axial fans are usually used in occasions with higher flow requirements and lower pressure requirements.

AC/EC/DC External Rotor Motor Powered Axial Fan

1.The external rotor motor powered axial fan has the characteristics of the characteristics of compact structure, reliable operation, low noise, easy installation and high efficiency, etc.

2.There are single-phase and three-phase power input types for the external rotor motor powered axial fan. And the axial fans are widely used in the industries of industries of evaporator, condenser, water cooler, heat pump, IT&Telecom and ventilation, ect.

3.The external rotor motor has a low start current, and is IP54 protection level, insulation class F evaluated.

4.There’s a built-in thermal protector for the single-phase motor, and the motor can be operated in the temperature from -30 to 60 degrees Celsius. If the customer needs built-in thermal protector for the three-phase motor, please note us while placing the order.

5.The normal input voltages/frequency for our single-phase motor are 115V, 230V, 50/60Hz, and for three-phase motor are 380V, 460V, 50/60Hz. We can accommodate the voltage and frequency to customer’s requirements.

6.Average life of our motors

The bearing used on our motor is maintenance free ball bearing, and the average life rating is L10 which is between 30,000 to 50,000 hours based on different operating conditions.

Features of Axial Fan

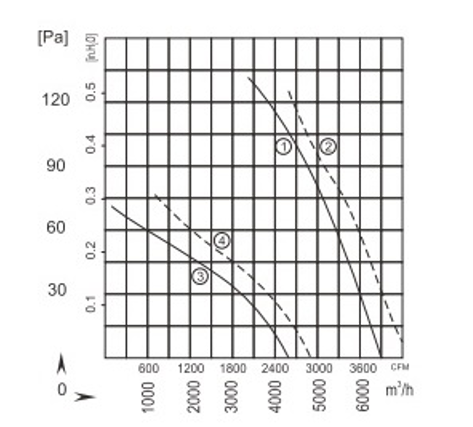

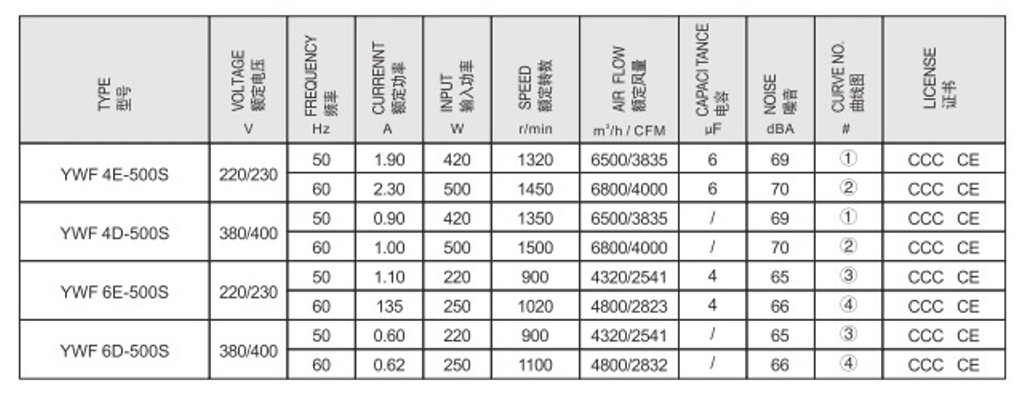

Technical Data of Axial Fan

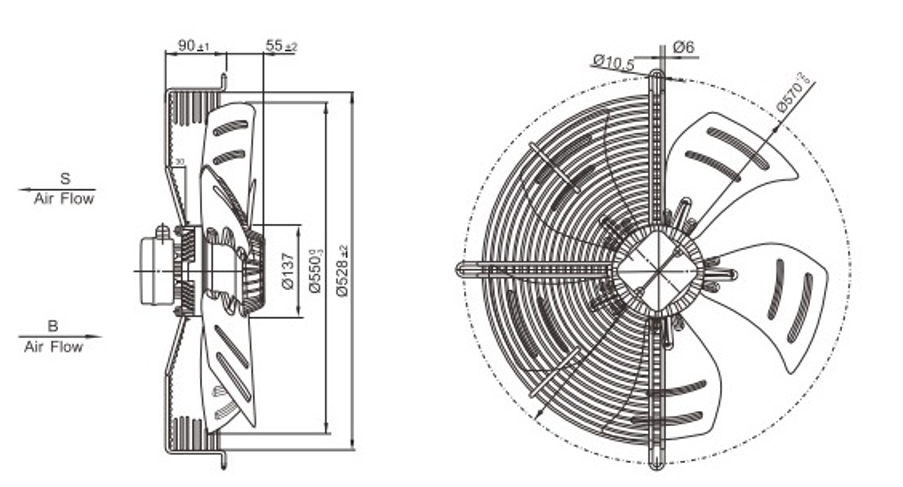

Overall Size of Axial Fan

FAQ:

1. Q: How we choose the right Axial fans as we need?

A: For your similar, please share us: the volume at certain static pressure.

2. Q: Can you provide us sample of Axial fans, is it free or need to pay?

A: Free sample is always available, freight cost on customer's side.

3. Q: What's your payment term?

A: 30% deposit and 70% balance before shipping by LC,TT on FOB term.

4. Q: What kind of product you can provide?

A: As a professional factory of hvac motor and Axial fans, many different motor models and

Axial fans are on our list: fan coil unit motor for central air conditioner, motor for split, cabinet, window, ceiling air conditioner, cooler motor, blower motor, fan motor, heat pump motor, universal fan motor, indoor fan motor, outdoor fan motor, condenser fan motor, PG motor, and other HVAC/R MOTOR; BLDC motor, EC motor, stepper motor, single and three phase motor; AC Centrifugal fan, EC centrifugal blower as well as other HVAC parts, which are on our service to help cusotmer purchase.

5. Q: Is there a MOQ for your Axial fans?

A: Yes. The MOQ is between 100-500pcs for different models after sample approval. And it's also okay for us to accept smaller lots for the initial order.

6. Q: Could you send me a price list?

A: Most of our axial fans are not standard, they are customized according to different requirements such as voltage and power. Therefore, it is difficult for us to provide a price list. If you can share your detailed requirements and quantity, we will definitely provide a very competitive price.
