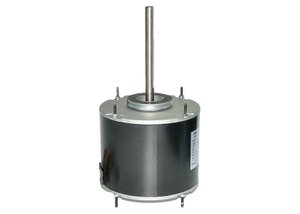

High Efficency Low Temperature Air Conditioner Fan Motor 60Hz 208V-230V

Air conditioner fan motor is a kind of HVAC AC motor. Each OEM replacement A/C motor extends equipment life by replacing old or damaged HVAC motors in ventilator, fan, and blower. Our air conditioning motors match the equipment's existing motor well by ensuring consistent performance and correct installation.
  • YSK140-120-6A5

  • Tingertech

  • 3/4 HP

  • 60Hz

Availability:
Quantity:

Product Description

Air conditioner fan motor is a kind of HVAC AC motor. Each OEM replacement A/C motor extends equipment life by replacing old or damaged HVAC motors in ventilator, fan, and blower. Our air conditioning motors match the equipment's existing motor well by ensuring consistent performance and correct installation.


Nomenclature for Motor:


YS(D)K140-150-6A

Y: asynchronous motor

S: Dual shaft

D: Single shaft

K: Air conditioning

140: Motor frame (outer diameter of stator)

150: Motor output power

6: Number of poles

A: Factory design code (or customer code, etc.)


Motor featurers:


1. Large Wind Amount.

2. Top company position as Carrier, York, McQuay, Trane and China Midea, Gree.

3. It is used in 2P, 3P, 4P Split type indoor air conditioner.

4. Brass terminals plug-in.

5. Steel end cap plated, rolled steel shell or resin packed.


Technical specification:


Note: the following motor specification is customized according to customer requirement.

Model Number

Power

(HP)

Voltage

(V)

Frequency

(Hz)

Speed

(RPM)

Rotation

Capacitor

/MDF/VAC

YSK140-550-6A

3/4

208-230

60

1075

REVERSIBLE

15/370

YSK140-550-4A2

3/4

208-230

60

1350/3 SPD

REVERSIBLE

12/370

YSK140-550-6A3

3/4

208-230

60

1075

REVERSIBLE

12/370

YSK140-550-6A4

3/4

208-230

60

1075

REVERSIBLE

12/370

YSK140-550-6A5

3/4

208-230

60

1075

REVERSIBLE

12/370

YSK140-550-6A7

3/4

208-230

60

1075

REVERSIBLE

15/370

YSK140-550-4A8

3/4

208-230

60

1625/3 SPD

REVERSIBLE

7.5/370

YSK140-550-4A9

3/4

208-230

60

1625

REVERSIBLE

7.5/370

YSK140-735-6A

1

208-230

60

1125

REVERSIBLE

22/440

More models:


Below are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM service offered.

Model Number

Voltage

/V

Frequency

/Hz

Output Power

/W

Rated Speed

/RPM

Capacitor

/μF

YDK140-74-4A

220-240

50

74

1390/3 SPD

4/370

YDK140-75-6A

220-240

50

75

850

4/370

YDK140-90-4A

208-230

60

90

1550

4/370

YDK140-90-6

220

50

90

890/3 SPD

5/370

YDK140-90-6A2

220-240

50

90

850

5/400

YDK140-110-6A2

220-240

50

110

900

5/370

YDK140-150-6A

220-240

50

150

840/3 SPD

6/370

YDK140-185-4A

220-240

50

185

1250

5/440

YDK140-185-4A2

220-240

50

185

1050/3 SPD

10/370

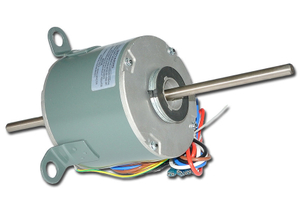

YDK140-120-6A5 (1)

FAQ

FAQ:


1. Q: How we get a same motor as we need?

A: For your same motor, please share us:

a.Your motor image and nameplate;

b.Detailed size of your motor.


2. Q: Can you provide us sample, is it free or need to pay?

A: Free sample is always available, freight cost on customer's side.


3. Q: What's your payment term?

A: 30% deposit and 70% balance before shipping by LC,TT on FOB term.


4. Q: What kind of product you can provide?
A: As a professional factory of hvac motor and centrifugal fan (housing fan), many different motor models and centrifugal duct fans are on our list: fan coil unit motor for central air conditioner, motor for split, cabinet, window, ceiling air conditioner, cooler motor, blower motor, fan motor, heat pump motor, universal fan motor, indoor fan motor, outdoor fan motor, condenser fan motor, PG motor, and other HVAC/R MOTOR; BLDC motor, EC motor, stepper motor, single and three phase motor; AC Centrifugal fan, EC centrifugal blower as well as other HVAC parts, which are on our service to help cusotmer purchase.


5. Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 100-500pcs for different models after sample approval. And it's also okay for us to accept smaller lots for the initial order.


6. Q: Could you send me a price list?
A: Most of our motor are not standard products, they are customized based on different requirements like voltage, power and shaft dia and length etc. Thus, it's really difficult for us to provide a price list. If you could share your detailed requirements and quantity, we'll be sure to offer a very competitive price.
