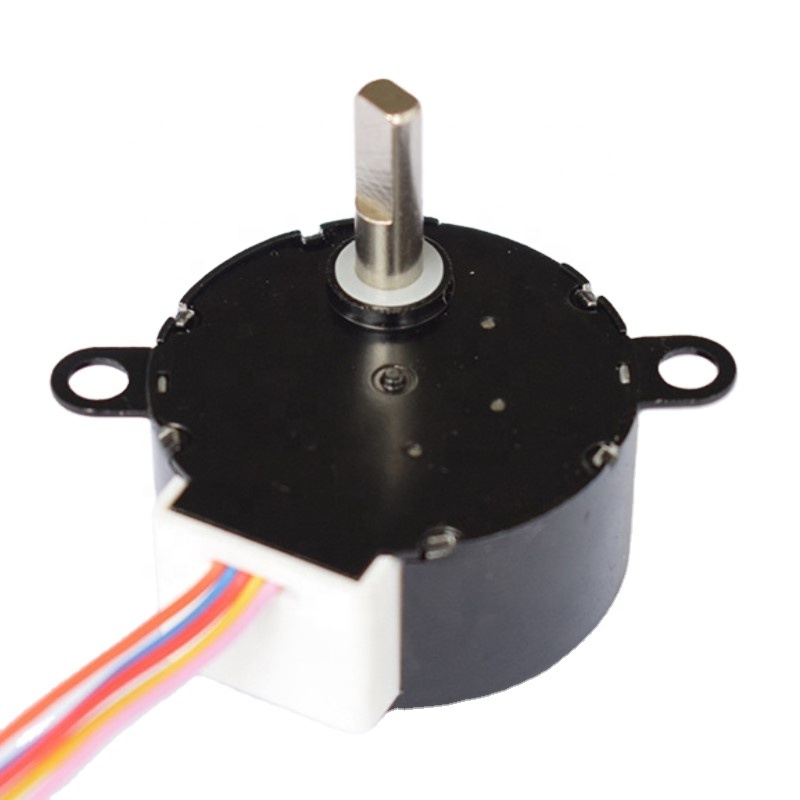

Low Energy High Torque 35BYJ46 Stepping motor for monitoring system

BYJ Stepper Motor from Tingertech is one of the most commonly used step motor in DVD drive, Motion camera, air conditioners, dehumidifiers, circulating fans, smart toilets, tea bar machines, surveillance cameras, stage lighting, purifiers and other household equipment and more similar devices.
  • 35BYJ46
  • Tingertech
Availability:
Quantity:

Product Description

The 35BYJ46 Stepper Motors are one of the most commonly used stepper motors. You can find this or similar motors in your DVD drives, Motion camera and many more similar devices. The motor has a 4 coil unipolar arrangement and each coil is rated for +5V hence it is relatively easy to control with any basic microcontrollers.


Features


  1. Widely used in robot,lock. Auto shutter, USB fan,Slot machine,Money detector, Coin refund devices,Currency Count machine, Towel dispensers,adjusment mechanism, limit switch

  2. Suitable to small diameter, low noise and big toque application

  3. Motor default direction:CCW

  4. We can provide samples for your test.

  5. Rotating speed is constant and can be made as you required.

  6. Ratio: 1/16,1/25,1/64




Technical Specifications

Model

Voltage

(V)

Resistance

(Ω)

Frequency

(PPS)

Pull-in torque

(mN.m)

Self-positioning torque

(mN.m)

No-load pull-in frequency

(PPS)

No-load pull frequency

(PPS)

Step angle

(1-2 phase)

24BYJ48 5
60 100 ≥29.4 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 130 100 ≥44.1 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 200 100 ≥34.3 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 300 100 ≥35.0 ≥24.5 ≥500 ≥900 5.625°/64


Where to use 35BYJ46 Stepper Motor


These kind of motors are commonly used in your DVD drives, Motion camera and other similar applications. The motor has a 4 coil unipolar arrangement and each coil is rated for +5V hence it is relatively easy to control with any basic microcontrollers. These motors has a stride angle of 5.625°/64, this means that the motor will have to make 64 steps to complete one rotation and for every step it will cover a 5.625° hence the level of control is also high. However, these motors run only on 5V and hence cannot provide high torque, for high torque application you should consider the Nema17 motors. So if you are looking for a compact easy to use stepper motor with decent torque then this motor is the right choice for you.


35BYJ46 Dimensions

详情




FAQ

FAQ:


Q1: Are you manufacturer ?

A: Yes, we are manufacturer.?


Q2: How long is your delivery time?

A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.


Q3: If the products can't work after receiving it,what should I do?

A: We will replace new items for you at once and then we make the judgement for the issue.


Q4: What is the warranty?

A: 1-3 months to replace new items for free.


Q5: Do you accept OEM design?

A: Yes, we do. We can design according to your requirement, MOQ usually 2-10.
