High Torque Stepping Motor Explosionproof Stepper 24BJD48 Microstep Laser Engraving Machines

BYJ Stepper Motor from Tingertech is one of the most commonly used step motor in DVD drive, Motion camera, air conditioners, dehumidifiers, circulating fans, smart toilets, tea bar machines, surveillance cameras, stage lighting, purifiers and other household equipment and more similar devices.
  • 24BYJ48
  • Tingertech
Availability:
Quantity:

Product Description

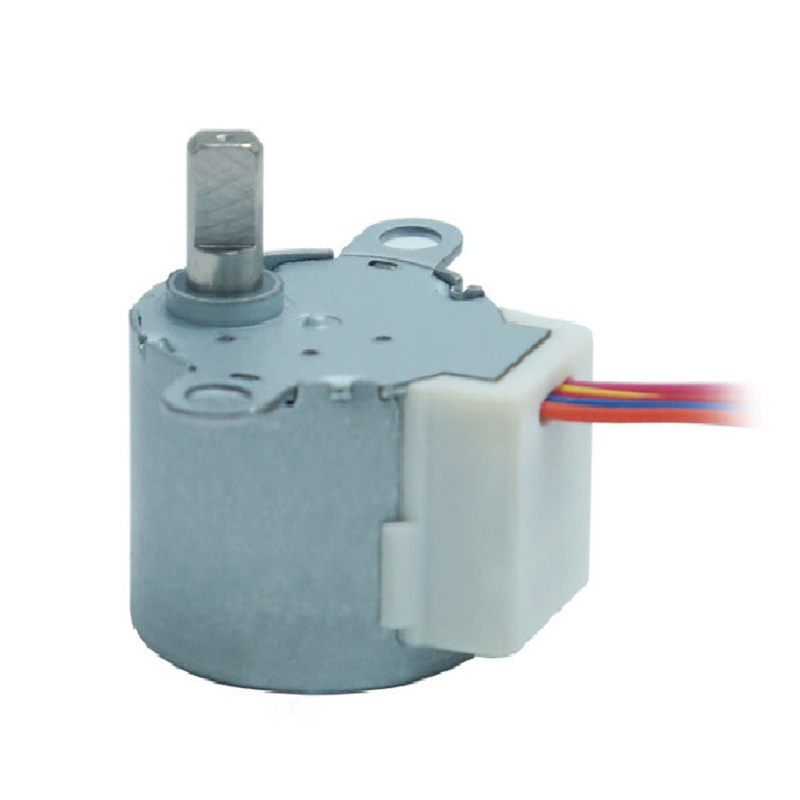

The 24-BYJ48 Stepper Motors are one of the most commonly used stepper motors. You can find this or similar motors in your DVD drives, Motion camera and many more similar devices. The motor has a 4 coil unipolar arrangement and each coil is rated for +5V hence it is relatively easy to control with any basic microcontrollers.


Features


Model Number 24BYJ48
Rated Voltage 5-24V
resistance 60-300
Operation Frequency 100 PPS
Pull-in torque ≥29.4mN.m,≥78.4mN.m,≥58.8mN.m
Highlights : Digitally controlled - Easy to use with a micro processor Maintenance free - motor is brushless
Application Telecommunication Antennae positioning Switching lines Telecommunication Antennae positioning Switching lines


Technical Specifications

Model

Voltage

(V)

Resistance

(Ω)

Frequency

(PPS)

Pull-in torque

(mN.m)

Self-positioning torque

(mN.m)

No-load pull-in frequency

(PPS)

No-load pull frequency

(PPS)

Step angle

(1-2 phase)

24BYJ48 5
60 100 ≥29.4 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 200 100 ≥29.4 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 250 100 ≥29.4 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 300 100 ≥29.4 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 300 100 ≥58.8 ≥29.4 ≥500 ≥900 5.625°/64
24BYJ48 12 300 100 ≥9.80 ≥7.35 ≥500 ≥600 5.625°/16
24BYJ48 24 300 100 ≥58.8 ≥19.6 ≥500 ≥500 11.25°/64


Where to use 24BYJ48 Stepper Motor


These kind of motors are commonly used in your DVD drives, Motion camera and other similar applications. The motor has a 4 coil unipolar arrangement and each coil is rated for +5V hence it is relatively easy to control with any basic microcontrollers. These motors has a stride angle of 5.625°/64, this means that the motor will have to make 64 steps to complete one rotation and for every step it will cover a 5.625° hence the level of control is also high. However, these motors run only on 5V and hence cannot provide high torque, for high torque application you should consider the Nema17 motors. So if you are looking for a compact easy to use stepper motor with decent torque then this motor is the right choice for you.


24BYJ48 Dimensions

旻盛 详情 (5)




FAQ

FAQ:


Q1: Are you manufacturer ?

A: Yes, we are manufacturer.?


Q2: How long is your delivery time?

A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.


Q3: If the products can't work after receiving it,what should I do?

A: We will replace new items for you at once and then we make the judgement for the issue.


Q4: What is the warranty?

A: 1-3 months to replace new items for free.


Q5: Do you accept OEM design?

A: Yes, we do. We can design according to your requirement, MOQ usually 2-10.
