EU Ecodesign Information — Regulation (EU) 2019/1781
Manufacturer: [CHANGZHOU TINGER INTELLIGENT TECHNOLOGY CO., LTD] (trade mark: [TINGERTECH])
Commercial registration number: [91320412MA25BQ76XP]
Address: [#319,BUILDING A, BLOCK A, YIHAOTIANXI HUAYUAN, XINBEI DISTRICT, CHANGZHOU CITY, JIANGSU PROVINCE, CHINA]
Model identifier: [YDK-250-4]

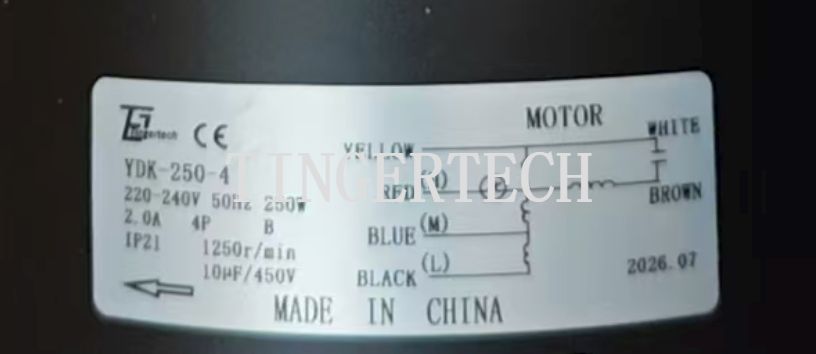

Ecodesign status: This motor is exempt from the efficiency requirements of Commission Regulation (EU) 2019/1781 pursuant to Article 2(2)(n): it is a multi-speed motor with a switchable winding (three speed taps H/M/L) providing more than one rated speed at the same supply frequency. Accordingly, no IE efficiency class is marked on or declared for this motor.
Year of manufacture: see nameplate.

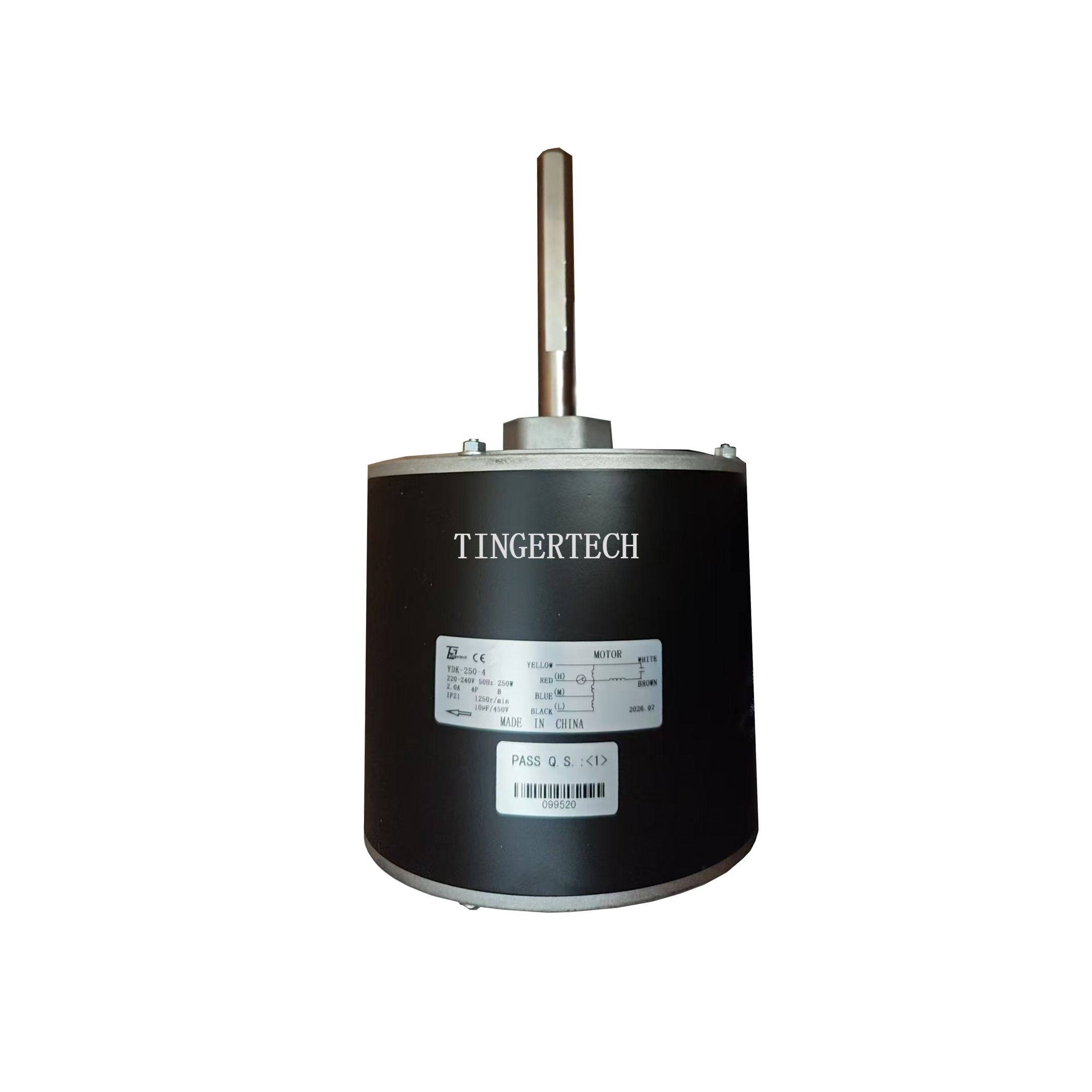

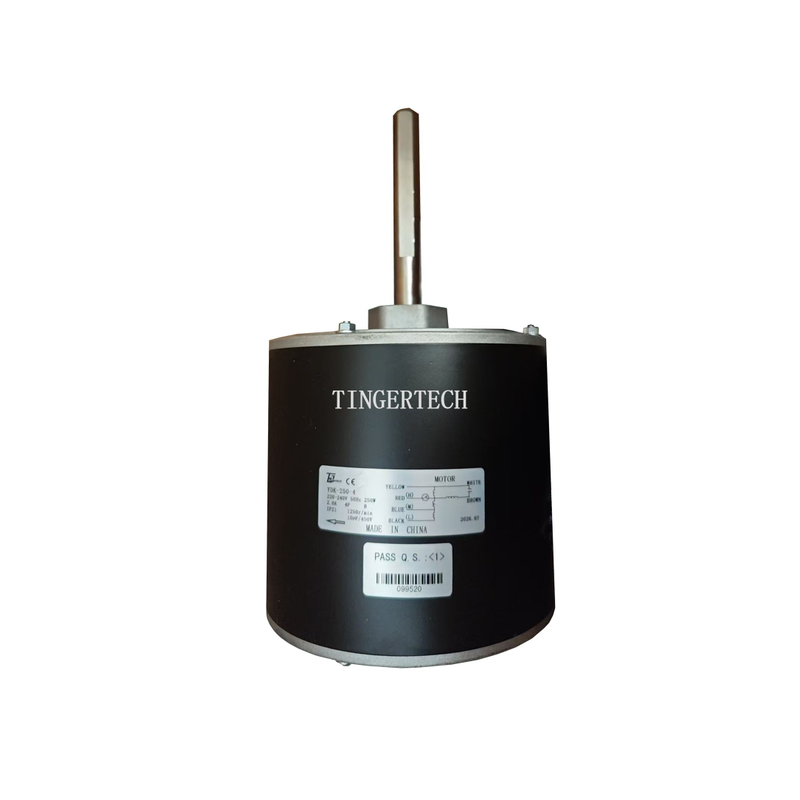

Centrifugal Fan motor is a kind of fan motor for forward curved centrifugal fan, also called blower or blower fan. This kind of Centrifugal Fan is characterized by its cylindrical shape and lots of small blades on the circumference of the impeller. It comes in single inlet or dual inlet. Our AC fan motor for centrifugal blower fan is specially designed in the purpose of installation.
Product Specification for Centrifugal Fan Motor:
Model | Voltage(V) | Frequency(Hz) | Output(W) | Speed(RPM) | Capacitor(μF) |
YDK-80-4 | 208-230 | 50/60 | 80 | 1200 | 8 |
YDK-120-6 | 208-230 | 50/60 | 120 | 880 | 10 |
YDK-220-6 | 208-230 | 50/60 | 220 | 880 | 10 |
YDK-250-4 | 208-230 | 50/60 | 250 | 1250 | 15 |
YDK-550-4 | 208-230 | 50/60 | 550 | 1250 | 15 |
YDK-550-6 | 208-230 | 50/60 | 550 | 900 | 15 |
Fan Motor for Centrifugal fan Feature:
Easy rotation
Quick installation
Energy efficient
Quiet operation
Automatic overload
Thermal protection
High efficiency
High reliability
Little vibration
Low noise
Fan Motor Application:
Notes for Fan Motor:
The above mentioned specification is representative specification,The specification can also be designed and manufactured according to customers requirement.
The products of 100-120V,200-240V,60Hz can also be supplied as requested.
We will not give special notice on changes,please contact our technical department for further information.
FAQ:
Q: Can you provide us fan motor sample, is it free or need to pay?
A: If you don’t need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like Fedex, DHL or TNT. If you don’t have, we need to charge express fee properly.
Q: What's your payment term for fan motor?
A: T/T, L/C, Western union or Paypal.
30% deposit, the 70% balance before shipping on FOB term.
Q: What kind fan motors you can provide?
A: For now, our company provides motors include: fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors and other hvac fan motors. All of these motors are designed for HVAC&R line.
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 100-500pcs for different models after sample approval. And it's also okay for us to accept smaller lots for the initial order.
Q: Could you send me a price list?
A: Most of our motors are not standard products, they are customized based on different requirements like voltage, power and shaft etc. Thus, it's really difficult for us to provide a price list. If you could share your detailed requirements and quantity, we'll be sure to offer a very competitive price.
