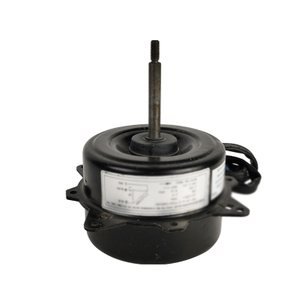

YDK-40-4 40W Air Conditioner Outdoor Fan Motor for fresh air ventilation system
Our up/down Split AC outdoor fan motor is designed for either vertical shaft-up or shaft-down application, which serves Heating Ventilation and Air Conditioning HVAC Equipment.Contact us for other air cond model's outdoor fan motor, quickly obtain the latest quotation, select more quality Air Conditioner Parts and HVAC Parts manufacturer and supplier here at tingertech.com.
Our up/down Split AC outdoor fan motor is designed for either vertical shaft-up or shaft-down application, which serves Heating Ventilation and Air Conditioning HVAC Equipment.Contact us for other air cond model's outdoor fan motor, quickly obtain the latest quotation, select more quality Air Conditioner Parts and HVAC Parts manufacturer and supplier here at tingertech.com.
Nomenclature for Motor:
YS(D)K140-150-6A
Y: asynchronous motor
S: Dual shaft
D: Single shaft
K: Air conditioning
140: Motor frame (outer diameter of stator)
150: Motor output power
6: Number of poles
A: Factory design code (or customer code, etc.)
Motor featurers:
1. Low vibration and low noise.
2. Thermal protection,automatic overload and ball bearing.
3. Steady performance and large loading capacity.
4. 100% pure copper winding, aluminum motor can also be provide.
5. Advanced manufacturing equipment, skilled craftwork, high level of automatization.
Technical Specification:
Item
Air Condition Outdoor Fan Motor
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Phase
Single
Motor Design
Permanent Split Capacitor
Hz
50/60
Nameplate RPM
1200
No. of Speeds
1
Voltage
220-240V
Output
40W
Motor Service Factor
1
Motor Thermal Protection
Auto
Ins. Class
B
Duty Cycle
Continuous
Max. Ambient Temp.
60 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Close Dripproof
More models:
Below are representative motors, only for reference, dimensions can be customized according to customer requirements, OEM/ODM service offered
Model
Voltage
(V)
Frequency
(Hz)
Output
(W)
Speed
(RPM)
Capacitor
(μF)
YDK95-25-6
208-230
50/60
25
880
2.5
YDK95-35-6
208-230
50/60
35
880
3
YDK95-45-6
208-230
50/60
45
880
3.5
YDK120-60-6
208-230
50/60
60
850
4
YDK139-150-6
208-230
50/60
150
900
10
YDK139-250-6
208-230
50/60
250
900
10
FAQ
FAQ:
1. Q: How we get a same motor as we need?
A: For your same motor, please share us:
a.Your motor image and nameplate;
b.Detailed size of your motor.
2. Q: Can you provide us sample, is it free or need to pay?
A: Free sample is always available, freight cost on customer's side.
3. Q: What's your payment term?
A: 30% deposit and 70% balance before shipping by LC,TT on FOB term.
4. Q: What kind of product you can provide? A: As a professional factory of hvac motor and centrifugal fan (housing fan), many different motor models and centrifugal duct fans are on our list: fan coil unit motor for central air conditioner, motor for split, cabinet, window, ceiling air conditioner, cooler motor, blower motor, fan motor, heat pump motor, universal fan motor, indoor fan motor, outdoor fan motor, condenser fan motor, PG motor, and other HVAC/R MOTOR; BLDC motor, EC motor, stepper motor, single and three phase motor; AC Centrifugal fan, EC centrifugal blower as well as other HVAC parts, which are on our service to help cusotmer purchase.
5. Q: Is there a MOQ for your motors? A: Yes. The MOQ is between 100-500pcs for different models after sample approval. And it's also okay for us to accept smaller lots for the initial order.
6. Q: Could you send me a price list? A: Most of our motor are not standard products, they are customized based on different requirements like voltage, power and shaft dia and length etc. Thus, it's really difficult for us to provide a price list. If you could share your detailed requirements and quantity, we'll be sure to offer a very competitive price.
