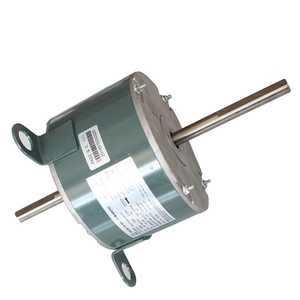

YDK95-50-6S for Fresh Air Ventilation System 50/60Hz AC Outdoor Unit Fan Motor

Our up/down Split AC outdoor unit fan motor is designed for either vertical shaft-up or shaft-down application, which serves Heating Ventilation and Air Conditioning HVAC Equipment. For more air condionter outdoor unit fan motor models, more quality Air Conditioner Parts and HVAC Parts, contact your fan motor manufacturers and suppliers here at tingertech.com.
  • YDK95-50-6S
  • Tingertech
  • 50W
  • 50Hz  60Hz  50/60Hz
Availability:
Quantity:

Product Description

In recent years, products that require fan motors and their applications are diversifying, including "cooling," "blast," and "exhaust & ventilation." Responding to such rapidly changing needs, Tingertech seeks to develop high static pressure, high efficiency, as well as low noise and low-vibration fan motors, and offers a wide lineup of such fan motors that meet these needs. Our up/down Split AC outdoor unit fan motor is designed for either vertical shaft-up or shaft-down application, which serves Heating Ventilation and Air Conditioning HVAC Equipment.


Nomenclature for Outdoor Unit Fan Motor:


YS(D)K140-150-6A

Y: asynchronous motor

S: Dual shaft

D: Single shaft

K: Air conditioning

140: Motor frame (outer diameter of stator)

150: Motor output power

6: Number of poles

A: Factory design code (or customer code, etc.)


Features of Outdoor Unit Fan Motors


  • High efficiency, low noise, small vibration.

  • Nickel plating for shaft, electrophoretic coating for enclosure.

  • Use NSK low noise high quality rolling bearing.

  • Copper winding design.

  • Reasonable structure.

  • Steel end cap plated, rolled steel shell or resin packed.


Technical specification of Outdoor Unit Fan Motor

Item

Outdoor Unit Fan Motor

Motor Application

HVAC/R

Motor Sub Application

Air Conditioner Fan Motor

Phase

Single

Motor Design

Permanent Split Capacitor

Hz

50/60

No. of Speeds

1

Voltage

220-240V

Output

50W

Nameplate RPM

880

Motor Service Factor

1

Motor Thermal Protection

Auto

Ins. Class

B

Duty Cycle

Continuous

Max. Ambient Temp.

60 Degrees C

Motor Shaft Rotation

CW/CCW

Motor Enclosure Design

Close Dripproof


More Outdoor Unit Fan Motor Models


Model

Voltage

(V)

Frequency

(Hz)

Output

(W)

Speed

(RPM)

Capacitor

(μF)

YDK95-25-6

208-230

50/60

25

880

2.5

YDK95-35-6

208-230

50/60

35

880

3

YDK95-45-6

208-230

50/60

45

880

3.5

YDK120-60-6

208-230

50/60

60

850

4

YDK139-150-6

208-230

50/60

150

900

10

YDK139-250-6

208-230

50/60

250

900

10

YDK50-6 (1)YDK50-6 (6)YDK50-6 (8)

ourdoor air conditioner mtoor DRAWING

What is a Fan Motor?


The compressor motor is located in the outdoor unit, also know as outdoor unit fan motor. There are actually three different fan motors in your air conditioning unit: condenser fan motor, blower motor, and compressor motor. The condenser fan motor powers the fan blade forcing air out of the condenser, pulling air out of the cabinet, transferring heat form the compressor and condenser coil. It helps keep the compressor from overheating. This part cools the refrigerant that moved through the condensing coils in your outside unit. The blower motor is located in the air handler. Tingertech offers various Air-Conditioner Fan Motors for a variety of popular models of equipment.



Fan Motor Structure

Fan motor structure is very simple in construction. Our ac fan motors consist of a stator and contain a rotating rotor inside, which is surrounded by pole-pieces. The fan motor types and sizes are very different and differentiate heavily among themselves.


All our fan motor complies with the appropriate International Standards as far as:

output

performance

dimensions


FAQ

FAQ:


1. Q: How we get a same motor as we need?

A: For your same motor, please share us:

a.Your motor image and nameplate;

b.Detailed size of your motor.


2. Q: Can you provide us sample, is it free or need to pay?

A: Free sample is always available, freight cost on customer's side.


3. Q: What's your payment term?

A: 30% deposit and 70% balance before shipping by LC,TT on FOB term.


4. Q: What kind of product you can provide?
A: As a professional factory of hvac motor and centrifugal fan (housing fan), many different motor models and centrifugal duct fans are on our list: fan coil unit motor for central air conditioner, motor for split, cabinet, window, ceiling air conditioner, cooler motor, blower motor, fan motor, heat pump motor, universal fan motor, indoor fan motor, outdoor fan motor, condenser fan motor, PG motor, and other HVAC/R MOTOR; BLDC motor, EC motor, stepper motor, single and three phase motor; AC Centrifugal fan, EC centrifugal blower as well as other HVAC parts, which are on our service to help cusotmer purchase.


5. Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 100-500pcs for different models after sample approval. And it's also okay for us to accept smaller lots for the initial order.


6. Q: Could you send me a price list?
A: Most of our motor are not standard products, they are customized based on different requirements like voltage, power and shaft dia and length etc. Thus, it's really difficult for us to provide a price list. If you could share your detailed requirements and quantity, we'll be sure to offer a very competitive price.
