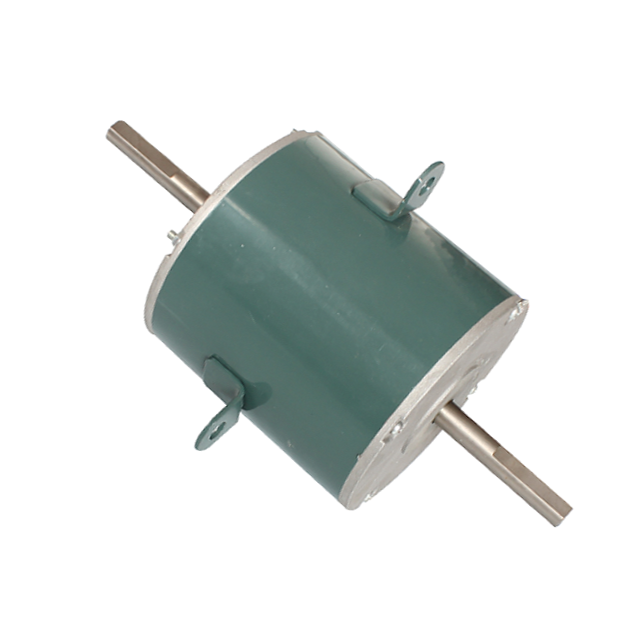

YSK140/35-4-185A 230V 185W with Capacitor Customized Electric Air Conditioning Universal Fan Motor

Air conditioner fan motor is a kind of HVAC AC motor. Each OEM replacement A/C motor extends equipment life by replacing old or damaged HVAC motors in ventilator, fan, and blower. Our air conditioning motors match the equipment's existing motor well by ensuring consistent performance and correct installation.
  • YSK140/35-4-185A

  • Tingertech

  • 185W

  • 60Hz

Availability:
Quantity:

Product Description

AC Universal Air Conditioner Fan Motor 220V 180W With Double Shaft. Air conditioner fan motor is a kind of HVAC AC motor. Each OEM replacement A/C motor extends equipment life by replacing old or damaged HVAC motors in ventilator, fan, and blower. Our air conditioning motors match the equipment's existing motor well by ensuring consistent performance and correct installation.


Nomenclature for Fan Motor:


YS(D)K140-150-6A

Y: asynchronous motor

S: Dual shaft

D: Single shaft

K: Air conditioning

140: Motor frame (outer diameter of stator)

150: Motor output power

6: Number of poles

A: Factory design code (or customer code, etc.)


Fan Motor Features:



1. Copper winding design (aluminum winding available if request)

2. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.

3. Steel end cap plated, rolled steel shell or resin packed.


Technical specification:

Item

Air Conditioner Fan Motor

Motor Application

HVAC/R

Motor Sub Application

Condenser Fan

Phase

Single

Motor Design

Permanent Split Capacitor

Hz

60

No. of Speeds

1

Voltage

220-240V

Output

185W

Nameplate RPM

880

Frame

140mm

Motor Service Factor

1

Motor Thermal Protection

Auto

Ins. Class

B

Duty Cycle

Continuous

Max. Ambient Temp.

60 Degrees C

Motor Shaft Rotation

CW/CCW

Motor Enclosure Design

Close Dripproof

More models:


Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.

Model Number

Voltage

/V

Frequency

/Hz

Power

Speed

/RPM

Capacitor

/MDF/VAC

OEM Model

YSK140-180-6A

208-230

60

1/4HP

1075/3 SPD

5/370

5KCP39FG5829ET

YSK140-185-6A

208-230

60

1/4HP

1100/2 SPD

5/370

5KCP39FGK111T

YSK140/35-4-185A

230

60

1/4HP

1170/3 SPD

7.5/370

KU3011

YSK140/35-4-185

220/230

50

1/4HP

1300/3 SPD

7.5/370

YSK140-185-4A5

230

50

1/4HP

1360/3 SPD

7.5/370

PM4104188



FAQ

FAQ:


1. Q: How we get a same motor as we need?

A: For your same motor, please share us:

a.Your motor image and nameplate;

b.Detailed size of your motor.


2. Q: Can you provide us sample, is it free or need to pay?

A: Free sample is always available, freight cost on customer's side.


3. Q: What's your payment term?

A: 30% deposit and 70% balance before shipping by LC,TT on FOB term.


4. Q: What kind of product you can provide?
A: As a professional factory of hvac motor and centrifugal fan (housing fan), many different motor models and centrifugal duct fans are on our list: fan coil unit motor for central air conditioner, motor for split, cabinet, window, ceiling air conditioner, cooler motor, blower motor, fan motor, heat pump motor, universal fan motor, indoor fan motor, outdoor fan motor, condenser fan motor, PG motor, and other HVAC/R MOTOR; BLDC motor, EC motor, stepper motor, single and three phase motor; AC Centrifugal fan, EC centrifugal blower as well as other HVAC parts, which are on our service to help cusotmer purchase.


5. Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 100-500pcs for different models after sample approval. And it's also okay for us to accept smaller lots for the initial order.


6. Q: Could you send me a price list?
A: Most of our motor are not standard products, they are customized based on different requirements like voltage, power and shaft dia and length etc. Thus, it's really difficult for us to provide a price list. If you could share your detailed requirements and quantity, we'll be sure to offer a very competitive price.
