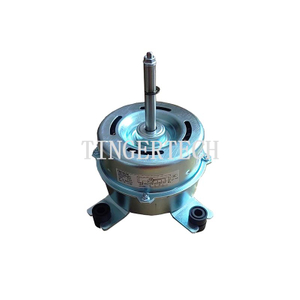

Air conditioner fan motor is a kind of HVAC AC motor. Each OEM replacement A/C motor extends equipment life by replacing old or damaged HVAC motors in ventilator, fan, and blower. Our air conditioning motors match the equipment's existing motor well by ensuring consistent performance and correct installation.
Nomenclature for Motor:
YS(D)K140-150-6A
Y: asynchronous motor
S: Dual shaft
D: Single shaft
K: Air conditioning
140: Motor frame (outer diameter of stator)
150: Motor output power
6: Number of poles
A: Factory design code (or customer code, etc.)
Motor featurers:
1. Reasonable structure, high efficiency, low temperaturer rise, low noise, small vibration.
2. 100% pure copper motors(according to customer request).
3. Minitype, light, little libration.
4. High level of automatization, high quality insurance.
Product Applications:
Air conditioner indoor / outdoor unit.
Air Purifiers, Air refresher.
Range hood, sewer grinder, dehumidifier, medical equipment, special blender etc.
Technical specification:
Model Series | YDK/YSK110 | YDK/YSK120
| YDK/YSK140 |
Output power | 10-120W | 50-250W | 200-750W |
Input voltage | 110-120V / 220-240V 1PH
|
Frequency | 50Hz / 60Hz / 50/60Hz
|
Rated speed | 600-1800RPM04/6P 4/6
|
Speeds | singlr/multi speeds
|
Insulation class | B/F
|
Protection class | IP20-44
|
Protect | Thermally Protected |
Enclosure | Totally enclosed / open ventilated |
Note: OEM/ODM can be offered and all dimension can be customized.
More models:
Below are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM service offered.
Model Number | Voltage/V | Frequency/Hz | Output Power/W | Rated Speed/RPM | Capacitor/μF |
YDK140-74-4A | 220-240 | 50 | 74 | 1390/3 SPD | 4/370 |
YDK140-75-6A | 220-240 | 50 | 75 | 850 | 4/370 |
YDK140-90-4A | 208-230 | 60 | 90 | 1550 | 4/370 |
YDK140-90-6 | 220 | 50 | 90 | 890/3 SPD | 5/370 |
YDK140-90-6A2 | 220-240 | 50 | 90 | 850 | 5/400 |
YDK140-110-6A2 | 220-240 | 50 | 110 | 900 | 5/370 |
YDK140-150-6A | 220-240 | 50 | 150 | 840/3 SPD | 6/370 |
YDK140-185-4A | 220-240 | 50 | 185 | 1250 | 5/440 |
YDK140-185-4A2 | 220-240 | 50 | 185 | 1050/3 SPD | 10/370 |
