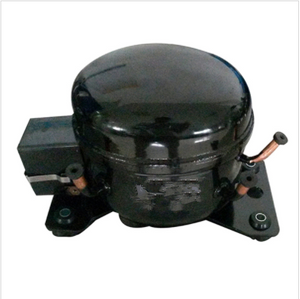

TGV25H Compressors refrigerator for freezer display

Compressor is a kind of low pressure gas to high pressure gas driven fluid machinery, is the heart of refrigeration system. It draws low temperature and low pressure refrigerant gas from the suction pipe, drives the piston to compress it through the motor operation, and discharges high temperature and high pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle.

  • TGV25H

  • Tingertech

Availability:
Quantity:

Product Description

There are five types of compressors used in the refrigeration and air conditioning industry: reciprocating, screw, rotary, scroll and centrifugal. Reciprocating is the most widely used compressor in small and medium-sized commercial refrigeration systems. Screw compressors are used in large commercial and industrial systems. Rotary compressors, scroll compressors are mainly used in household and small capacity commercial air conditioning units, while centrifugal compressors are widely used in large building air conditioning systems.

All kinds of reciprocating compressors are generally classified according to the form of compressor housing and the setting mode of driving mechanism. According to the shell form is divided into open and closed semi - closed compressor. Closed type refers to the whole compressor is arranged in a shell.

Voltage / frequency(V/Hz)
Horsepower
(hp)
Model

Displacement

Motor type


Cooling capacity+/-5%
ASHRAE(-23.3℃)
Input Power
+/-5%
COP+/-7%
ASHRAE(-23.3℃)

Cooling


(cc/rev) (kcal/h) (W) (Btu/h) w (kcal/h) (W) (Btu/h)
220-240V~
50/60Hz
1/14hp TGV20H 2.0cc RSIR 41 48 164.00 56.00 0.73 0.85 2.9 ST
1/13hp TGV25H 2.5cc RSIR 50 58 198.00 68.00 0.73 0.85 2.9 ST
1/12hp TGV30H 3.0cc RSIR 60 70 239.00 82.00 0.73 0.85 2.9 ST
1/12hp S30G 3.0cc RSIR 56 65 222.00 72.00 0.77 0.9 3.07 ST
1/10hp S36G 3.6cc RSIR 69 80 273.00 89.00 0.77 0.9 3.07 ST
1/8hp TGW43H 4.3cc RSIR 106 123 420.00 98.00 1.08 1.25 4.27 ST
1/6hp TGW53H 5.3cc RSIR 120 140 478.00 112.00 1.08 1.25 4.27 ST
1/5hp TGW65H 6.5cc RSIR 143 165 566.00 132.00 1.08 1.25 4.27 ST
1/4hp TGW75H 7.5cc RSIR 168 190 665.00 152.00 1.08 1.25 4.27 ST
1/4+hp TGQ91H 9.1cc RSIR 189 220 751.00 176.00 1.08 1.25 4.27 ST
1/3hp TGQ110H 11.0cc RSIR 241 280 955.00 215.00 1.11 1.3 4.43 ST
1/3+hp TGQ128H 12.8cc RSIR 280 326 1112.00 251.00 1.11 1.3 4.43 ST
115-127V/60Hz 1/14hp TGV20HD 2.0cc RSIR 47 55 188.00 65.00 0.73 0.85 2.9 ST
1/10hp TGV25HD 2.5cc RSIR 56 65 222.00 78.00 0.77 0.9 3.07 ST
1/12hp TGV30HD 3.0cc RSIR 69 80 273.00 100.00 0.77 0.9 3.07 ST
1/8hp TGW43HD 4.3cc RSIR 116 135 460.00 108.00 1.08 1.25 4.27 ST
1/6hp TGW53HD 5.3cc RSIR 138 160 546.00 128.00 1.08 1.25 4.27 ST
1/5hp TGW65HD 6.5cc RSIR 167 194 662.00 147.00 1.14 1.32 4.5 ST
1/4hp TGW75HD 7.5cc RSIR 196 228 777.00 173.00 1.14 1.32 4.5 ST
FC:Fancooling RSIR:ResistanceStartInductionRun EvaporatingTemp.:-23.3℃(-10℉) 1watt=3.41Btu/Hr
OC:Oilcooling RSCR:ResistanceStartCapacitorRun CondensingTemp.:54.4℃(130℉) 1watt=0.86Kcal/Hr
ST:Static CSIR:CapacitorStartInductionRun GasSuperheatedto:32.2℃(90℉) 1Kcal/Hr=3.97Btu/Hr

CSR:CapacitorStartCapacitorRun Liquidsub-cooledto:32.2℃(90℉)


AmbientTemp.:32.2℃(90℉)
AsaresultofAsbeilapolicyofconstantdevelopment,technicalspecificationsmaybesubjecttochange.
